X-431 PAD9 LINK

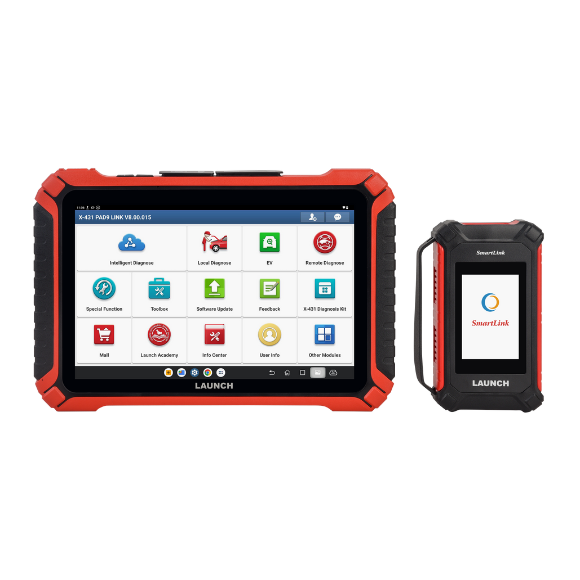

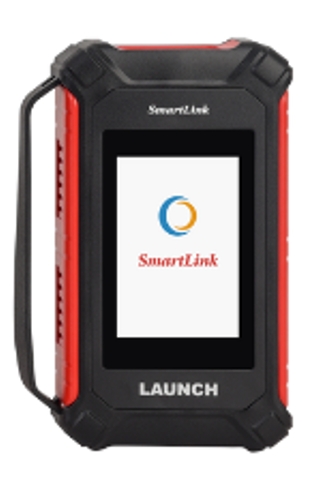

The X-431 PAD9 LINK is a new flagship high-end diagnostic tool from LAUNCH, coming with a new smart VCI-SmartLink C V3.0, which takes more enhanced WIFI communication and more secure connection. The X-431 PAD9 LINK scan tool with multi-channel system scanning speeds up by about 10 times. The auto repair shops can use it to diagnose passenger cars, commercial vehicles, and new energy vehicles on the market.
1. Full system vehicle coverage for U.S., Asian and European markets: 150+ passenger cars, 110+ commercial vehicles(optional), and 140+ new energy vehicles(optional), which is continuously getting updated.
2. The diagnostic software is available to purchase separately on the ‘MALL’ as demanded at any time.
3. Topology mapping gives a visual checking on DTCs and all systems communication status.
4. X-431 FIX diagnostic database providing detailed interactive wiring diagrams and illustrations enables technicians to complete every repairing job.
5. Support automotive communication protocols CAN/CANFD/DoIP and automotive communication standards J2534.
6. Guided function for VW and AUDI.
7. The basic functions include reading & clearing DTC, remote diagnosis, Bi-directional control, live data graph, wireless software update etc.
8. Advanced coding and programming function.
9. Multi-channel high-speed scan about 10 times faster. NEW
10. Supports SGW(security gateway) access.
11. Read multi-system data streams. NEW
12. The LAUNCH AI software is now available on the X-431 PAD9 LINK. NEW
13. Optional ADAS calibration function increases more revenue.
14. An extended solution to support TPMS service.
15. Build-in repair information and training video modules help to track and fix issues fast.
16. Sunlight-readable screen and IP65 waterproof & dustproof.
Specification
| X-431 PAD9 LINK | |
| OS | Andorid 13.0 |
| CPU | 2.0GHz Octa-core |
| Display | 13.6 inch touch screen 2560*1600 |
| Memory | 12GB |
| Storage | 512GB |
| Camera | Rear 20MP, Front 8MP |
| Battery | 9360mAh @7.6V/71.1Wh |
| VCI Communication | 2.4 & 5GHz Dual WIFI |
| Interface | Type C, Type A, DC IN, Micro SD, Mini HDMI |
| Working Temperature | 0℃~50℃ |
| Dimensions | 377*246*35 mm |
